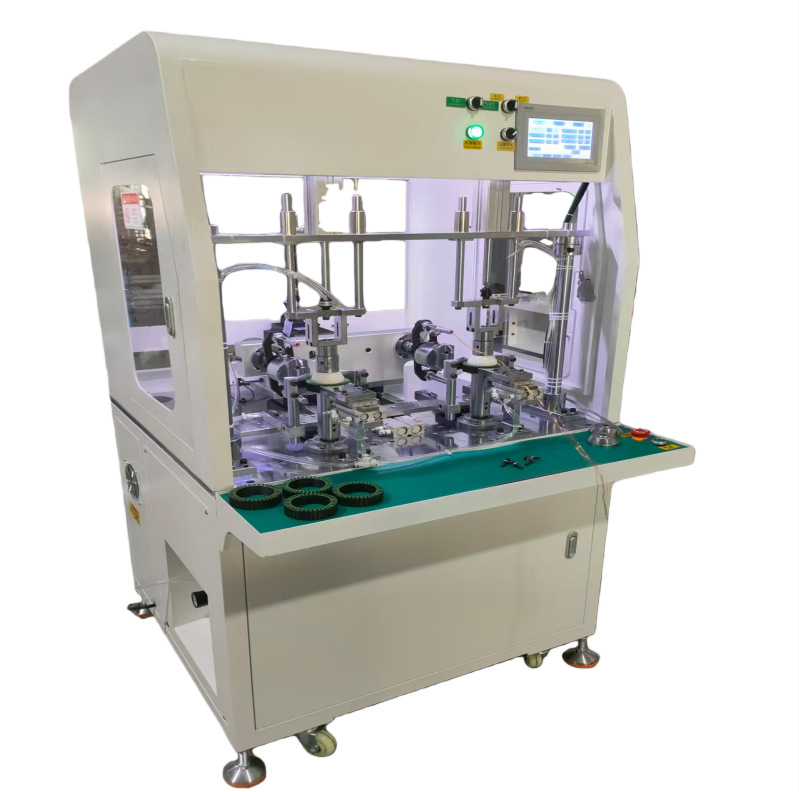

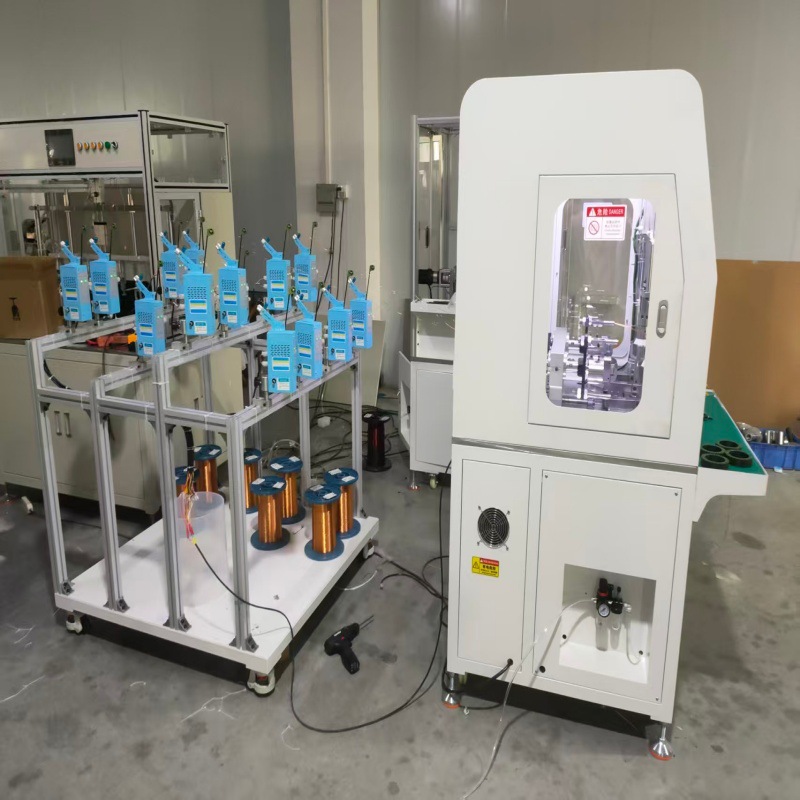

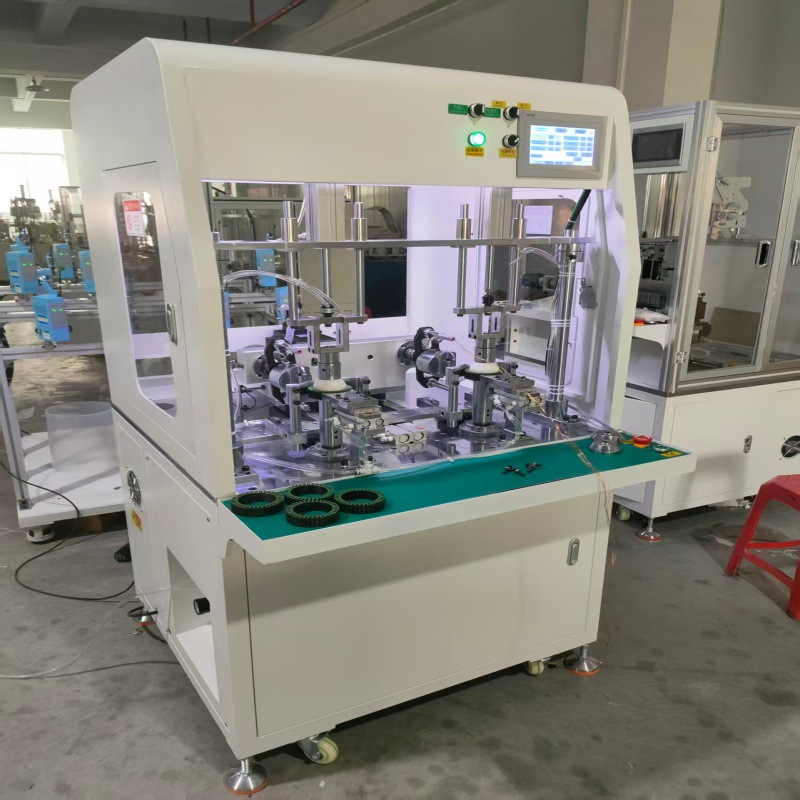

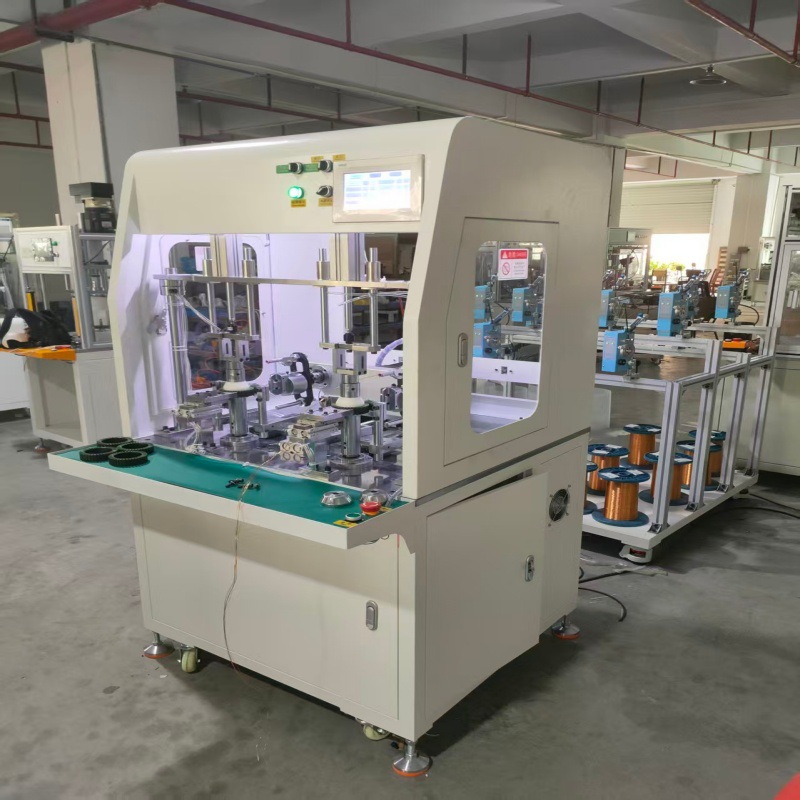

  供应单控双工位，全伺服电机，多股并绕，绕线机。采用伺服电机3台，主轴电机3KW，一台，排线电机，0.75KW一台，转角电机0.75KW一台配减速机一台。采用讯捷系统，配讯捷触摸屏，PLC，程序。配张力器14个，采用伺服张力器。线架。自动夹线，自动剪线。采用PLC编程，随机配各种气缸，电磁阀，采用三点组合气阀。滚珠丝杠，滑轨，机架，电箱，机箱采用铝材电脑锣加工，配合滑轨。各种感应器。

  机械参数，适应各种直径250mm以内的产品，高度在50-100mm以内，线直径，0.1-1.2mm以内。可以多股或者单股线绕线作业。根据客户产品，定制模具。机械具有下压固定定子功能。机械转速可以达到0-3000/转每分钟。根据产品需要调节。触摸屏可以保存0-90个产品。

  机械主要适应行业，各种电机生产，机器人关节电机生产，各种电动车电机，电风扇电机，等产品绕线加工。主要是外槽定子绕线。特殊型号可以定制。机器人关节电机，采用多线并绕，各种绕线加工，机械手旋转电机，滚筒电机。绕线，排线整齐漂亮。可以大线径绕线，采用多条铜线同步进行。根据客户提供的样品，定制模具。

Supply single control dual station, fully servo motor, multi-strand parallel winding, winding machine. Equipped with three servo motors, one main spindle motor (3KW), one wire feeding motor (0.75KW), one angle turning motor (0.75KW) with a reducer. Utilizes Xunjie system, including Xunjie touch screen, PLC, and program. Features 14 tensioners, employing servo tensioners. Wire frame. Automatic wire clamping and cutting. PLC programming is adopted, with various cylinders, solenoid valves, ball screws, slides, machine frame, electrical cabinet, and various sensors included.
Mechanical parameters: Suitable for products with diameters up to 250mm and heights within 50-100mm. Wire diameter ranges from 0.1 to 1.2mm. Multi-strand or single-strand wire winding operations are supported. Custom molds can be produced based on customer products. The machine features a downward pressure function for stator fixation. Mechanical speed can reach 0-3000 revolutions per minute, adjustable according to product requirements. The touchscreen can store data for 0-90 products.
The machinery primarily serves industries such as motor production, including robotic joint motors, various electric vehicle motors, electric fan motors, and other products requiring winding processing. It mainly focuses on external slot stator winding. Custom models are available upon request.
